What is TP-CCV2

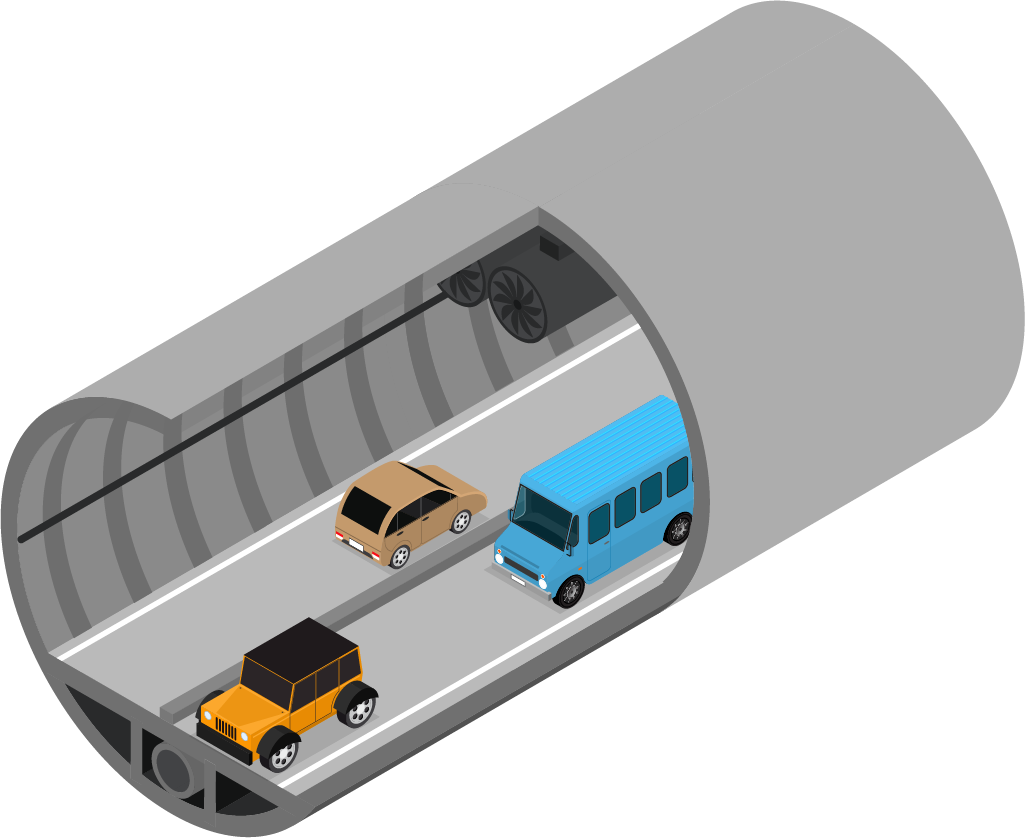

Thanks to TP-CCV2 is possible to continuously monitor the electrical continuity of the coaxial cables and radiating cables connected to the radio base stations for the diffusion of radio signals inside the tunnels.
The system allows you to detect in real-time a malfunction of the radiating cable, with a short-circuited line in the event of a fire, or an open line in the event of an interruption or defective connector.
Place of installation
Our system is designed for easy installation within the rack containing the base radio stations. With real-time monitoring capabilities, it can detect cable malfunctions such as short-circuited lines in the event of a fire, or open lines in the event of an interruption or defective connector. Protect your communications infrastructure with this reliable and effective solution.
MEET THE TP-CCV2 FAMILY

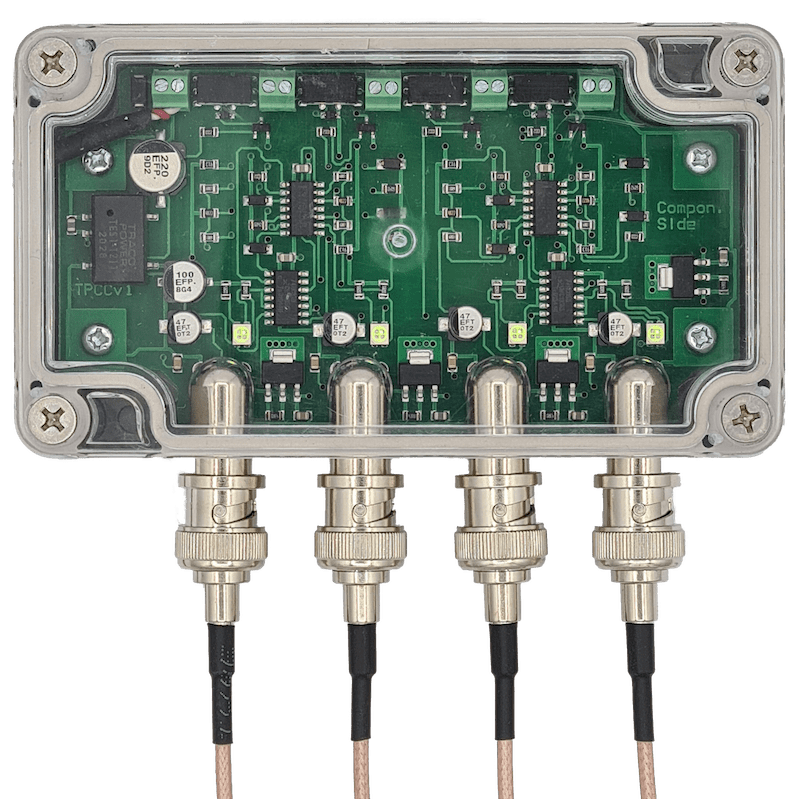

The TP-CCV2 Board
TP-CCV2 is the main board, is capable of monitoring up to 4 radiating cable together, ensuring the optimal functioning of your communications infrastructure. With this reliable and advanced technology, you can confidently maintain a high level of connectivity and performance.
Input voltage: 12 Vcc Max operating power: 2 Watt

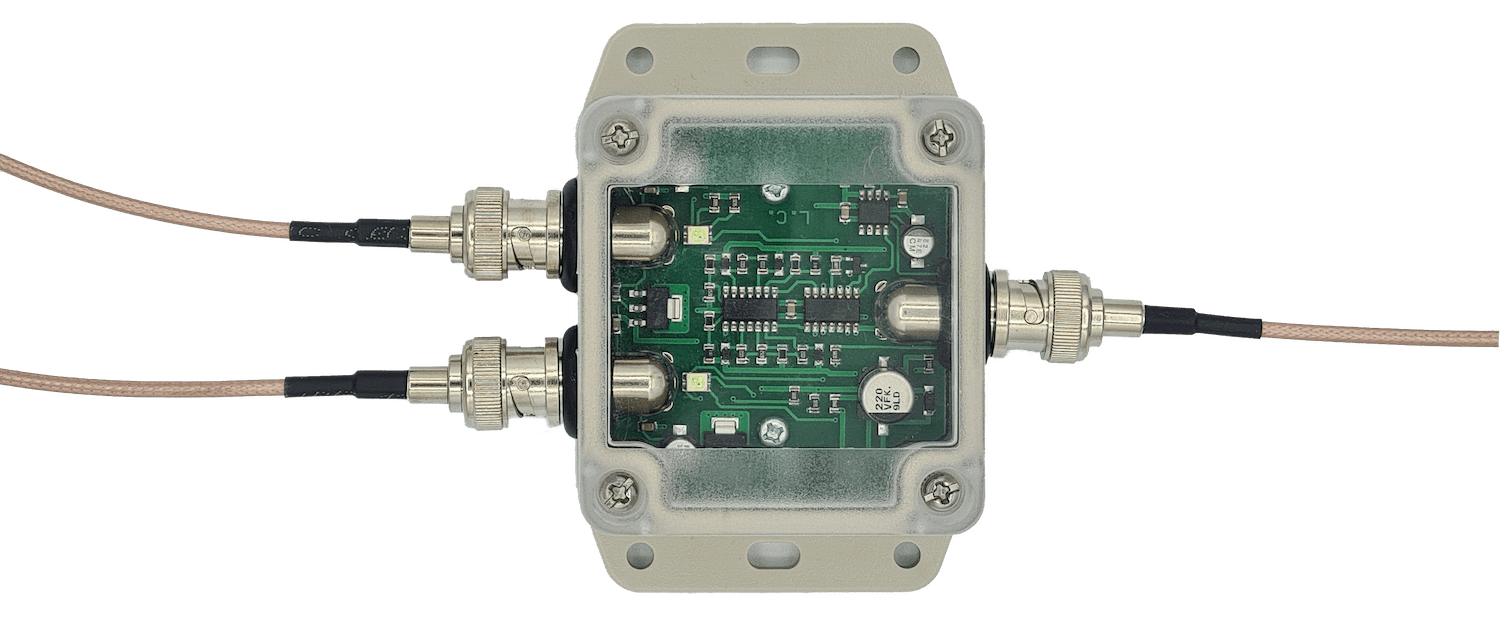

The ETPCV2 Board
ETPCV2 is the secondary board, must be used in conjuction with TP-CCV2 board, is usefull in case at the end of the radiating cable the signal is dirameted in more radiating cable. It take the power supply from the radiating cable.
Input voltage: Power supply from TP-CCV2 Max operating power: 2 Watt

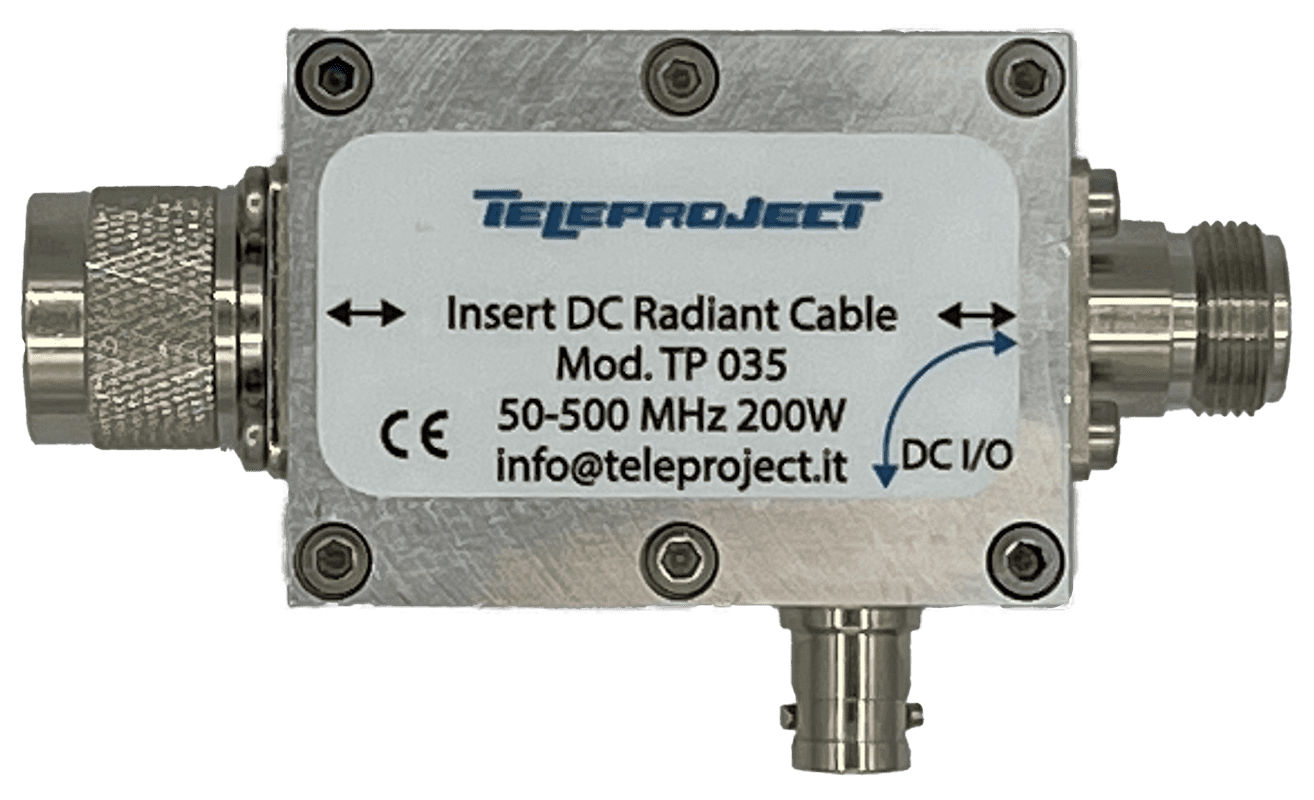

TP-035
TP-035 is passive component, it insert a DC current on the radiating cable.
Operating frequencies range: 50-500 MHz & 500-2500 MHz Max operating power: 200 Watt

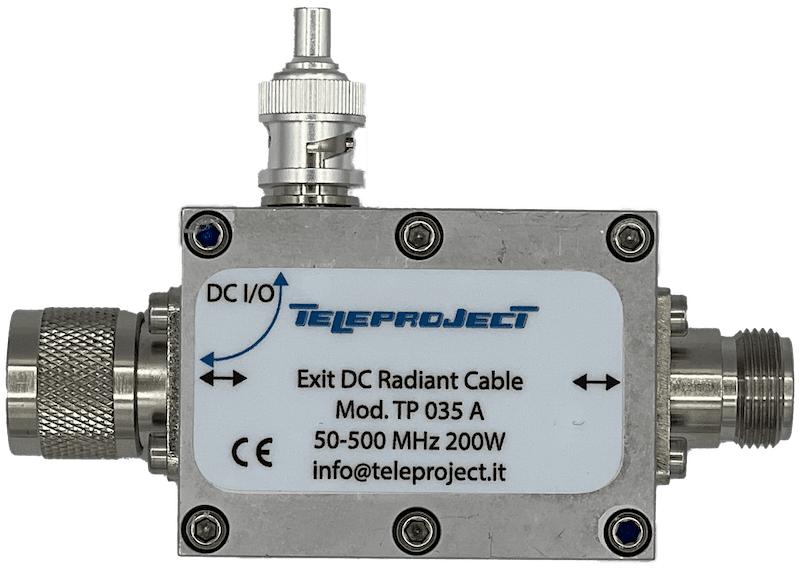

TP-035A
TP-035A is passive component, you need it when at the end of the radiating cable you have an antenna.
Operating frequencies range: 50-500 MHz & 500-2500 MHz Max operating power: 200 Watt

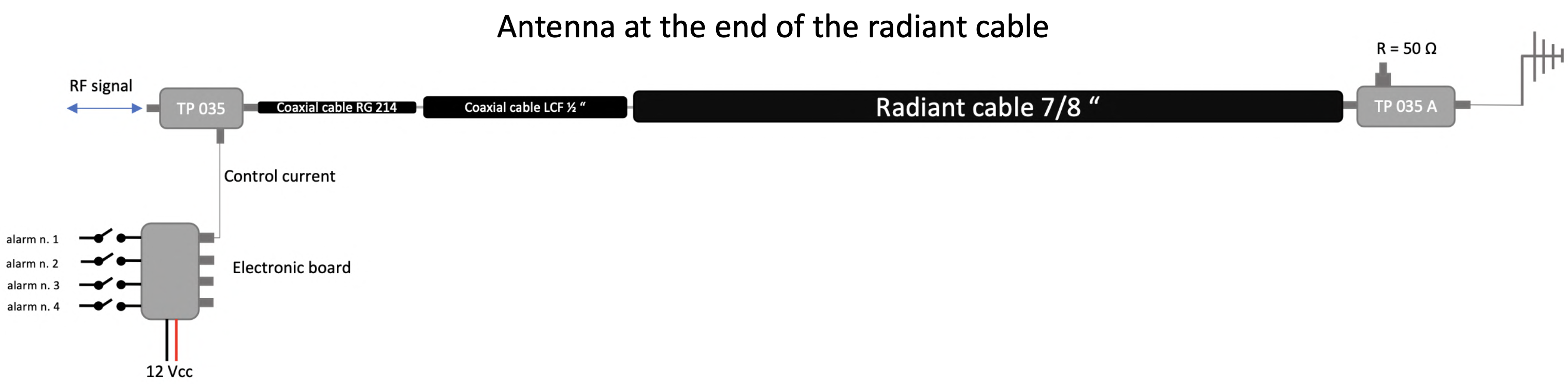

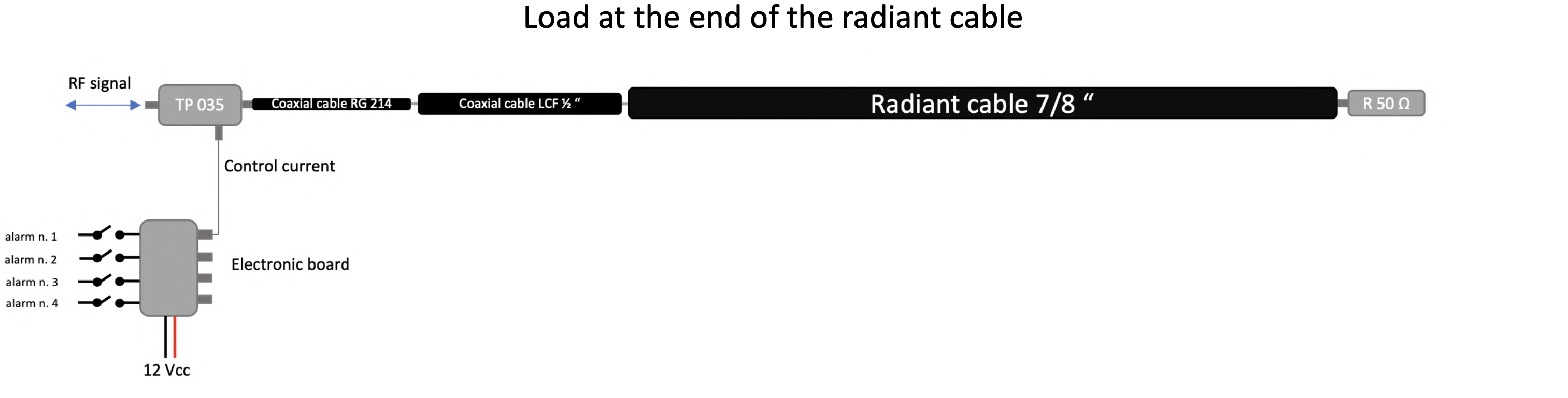

PRINCIPLE DIAGRAM
