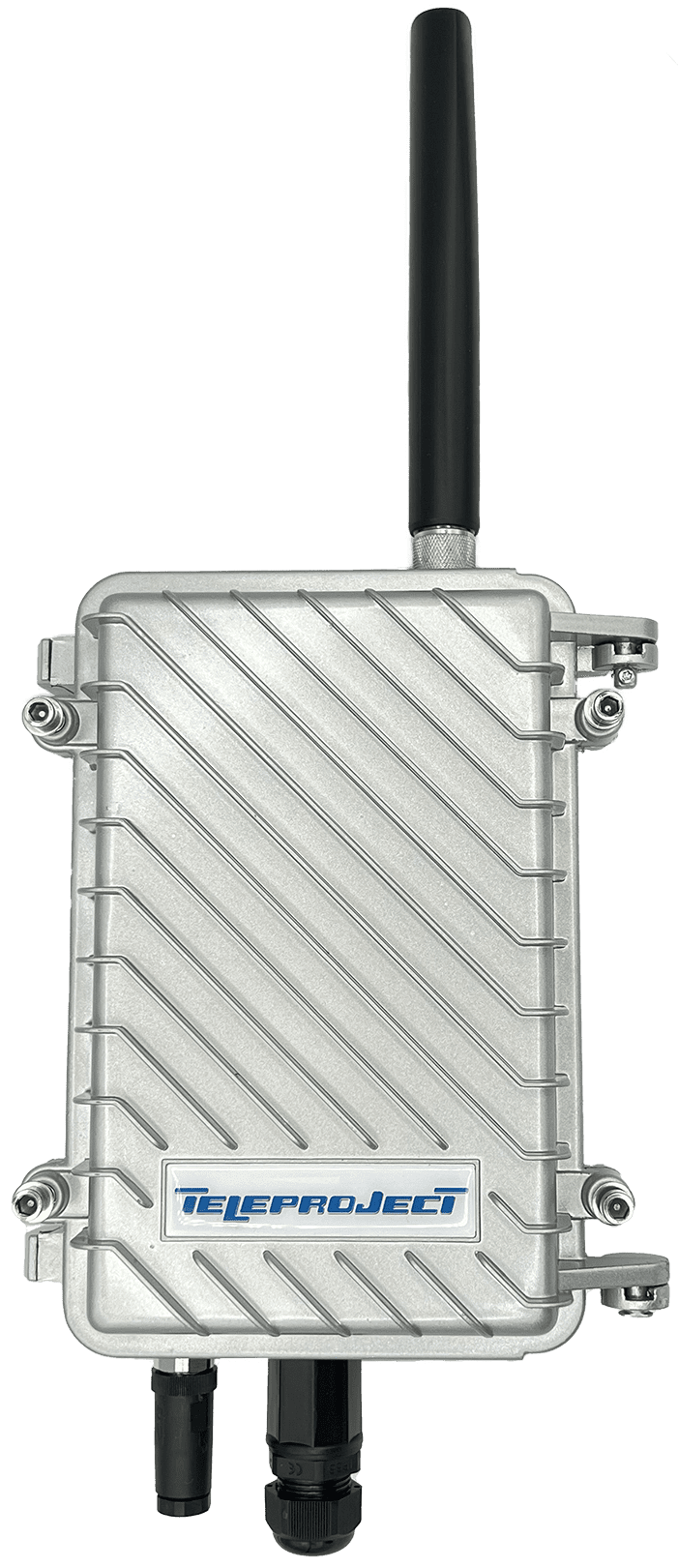

Outdoor spectrum analyzer
15 - 2700 MHz
The TP-RFX is a professional-grade outdoor RF spectrum analyzer with a frequency range from 15 MHz up to 2700 MHz. A future version will extend the frequency range up to 6 GHz.
The TP-RFX is capable of analyzing a wide range of fixed carrier frequencies, including TETRA, PMR, DMR, LoRa, WiFi, Smart Road Car2X & C-V2X (Q4 2023), FM, DAB and many more. In addition, TP-RFX is able to analyze 2G, 3G, 4G, and 5G (low band) cellular frequencies. For specialized cellular signal monitoring, we have developed the TP-CELLX
User-friendly web interface

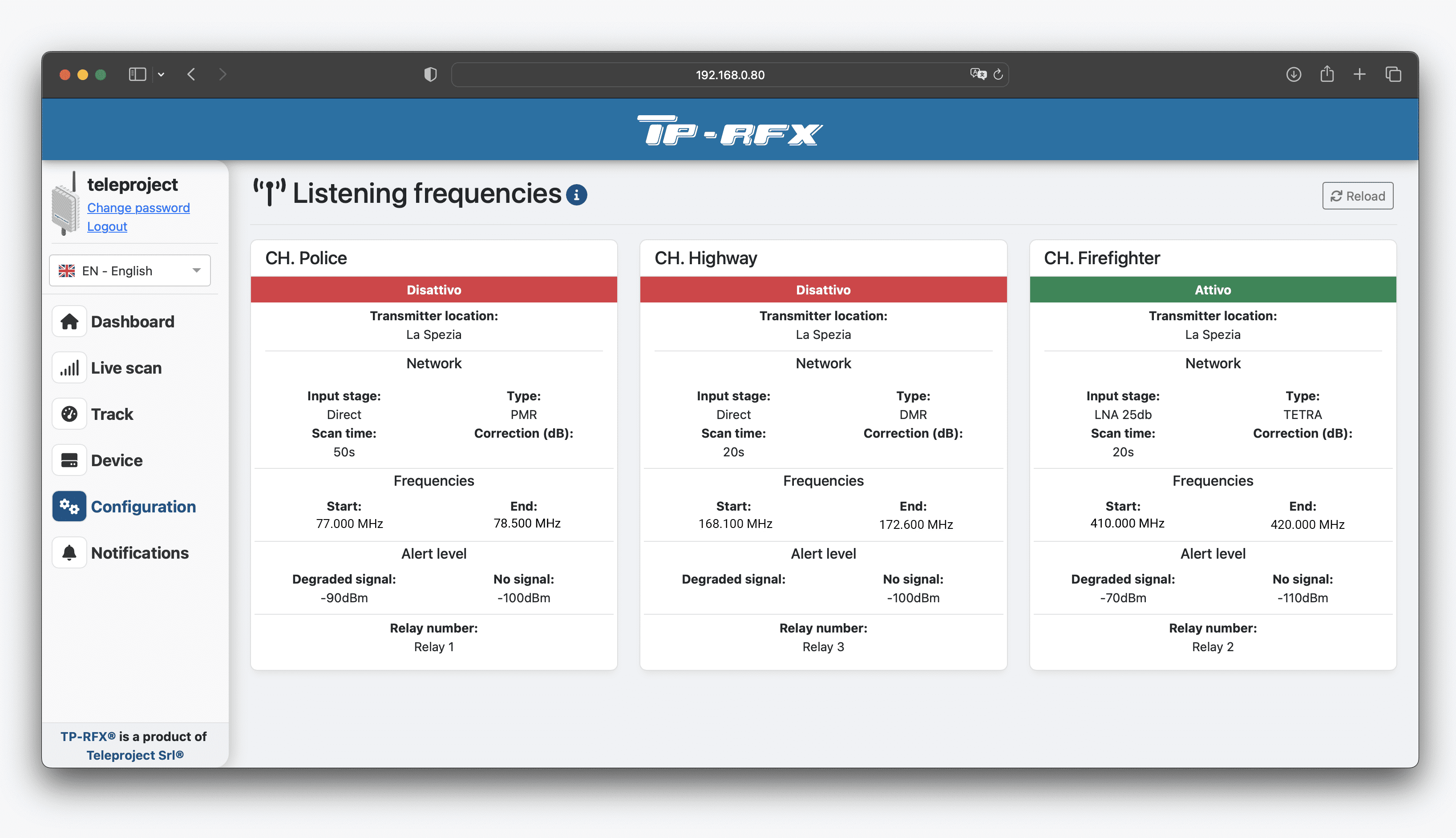

Setup and monitor the device directly from your browser!

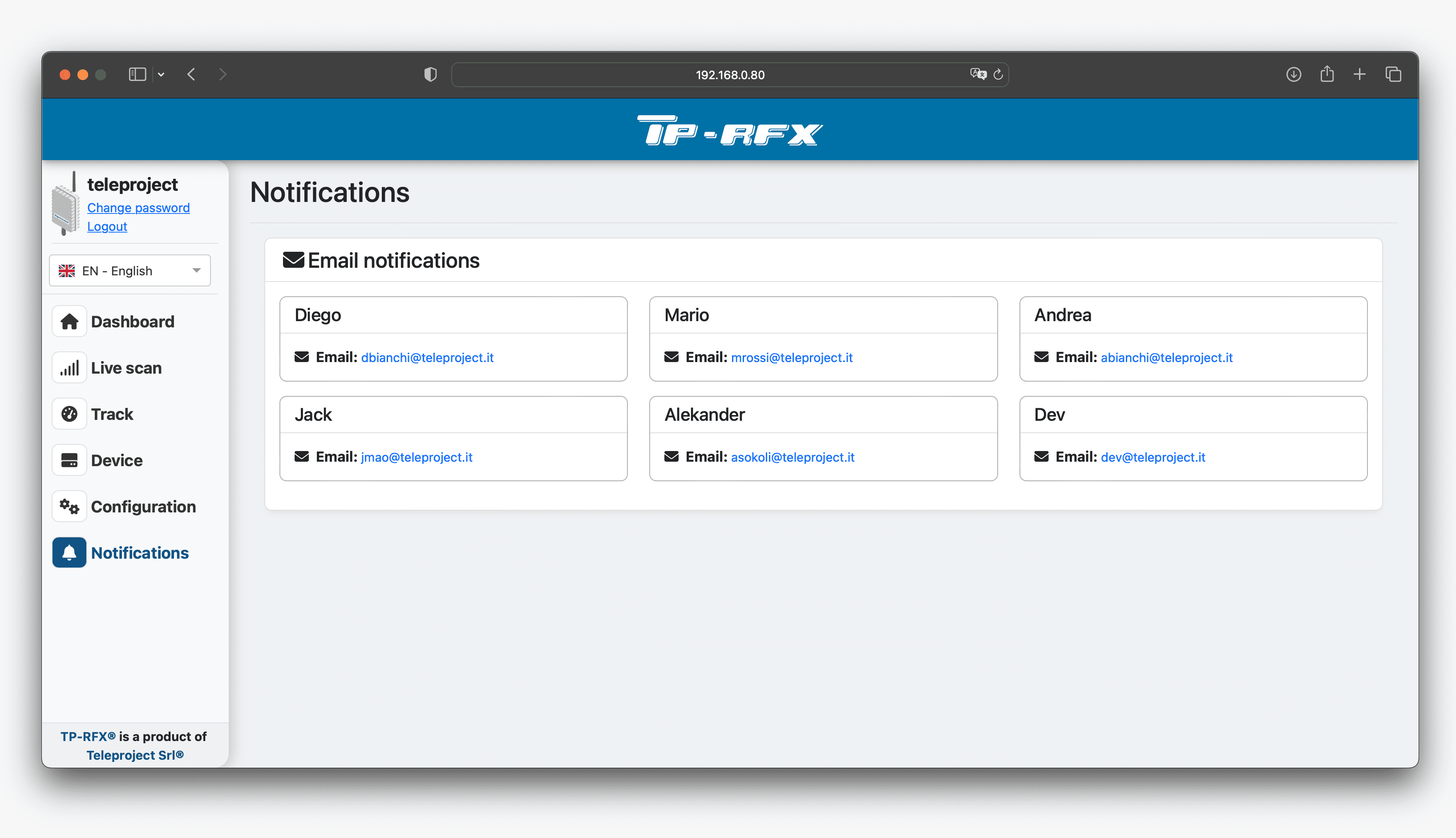

Our real-time dashboard allows you to monitor the status of your network and set up various notification systems, including email, SNMP, and relays, to ensure that you are always informed of the current status of your network.
Click the button below to get in touch with us and request a demo of the product.
DEMO
Rain and heavy wind resistant

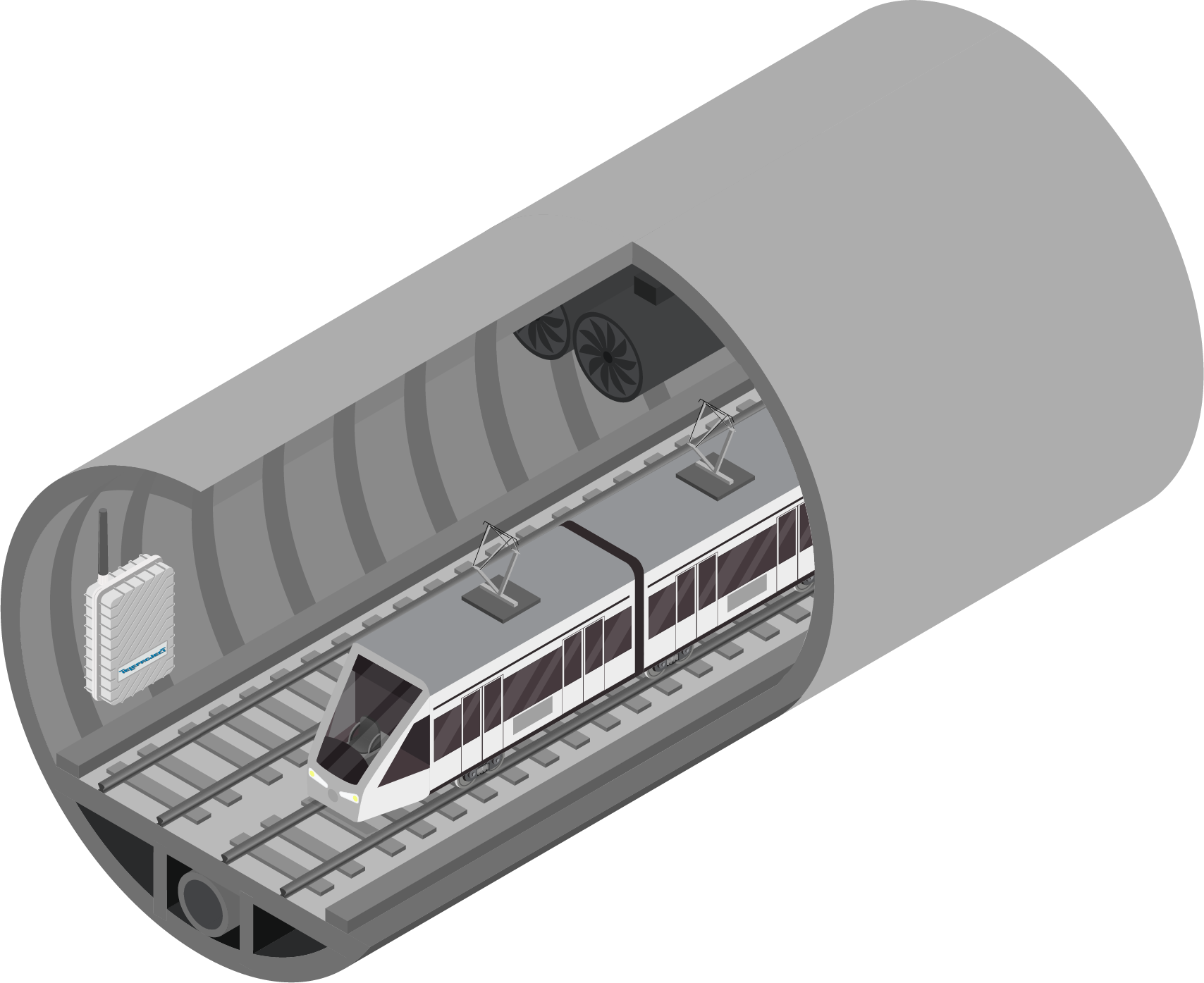

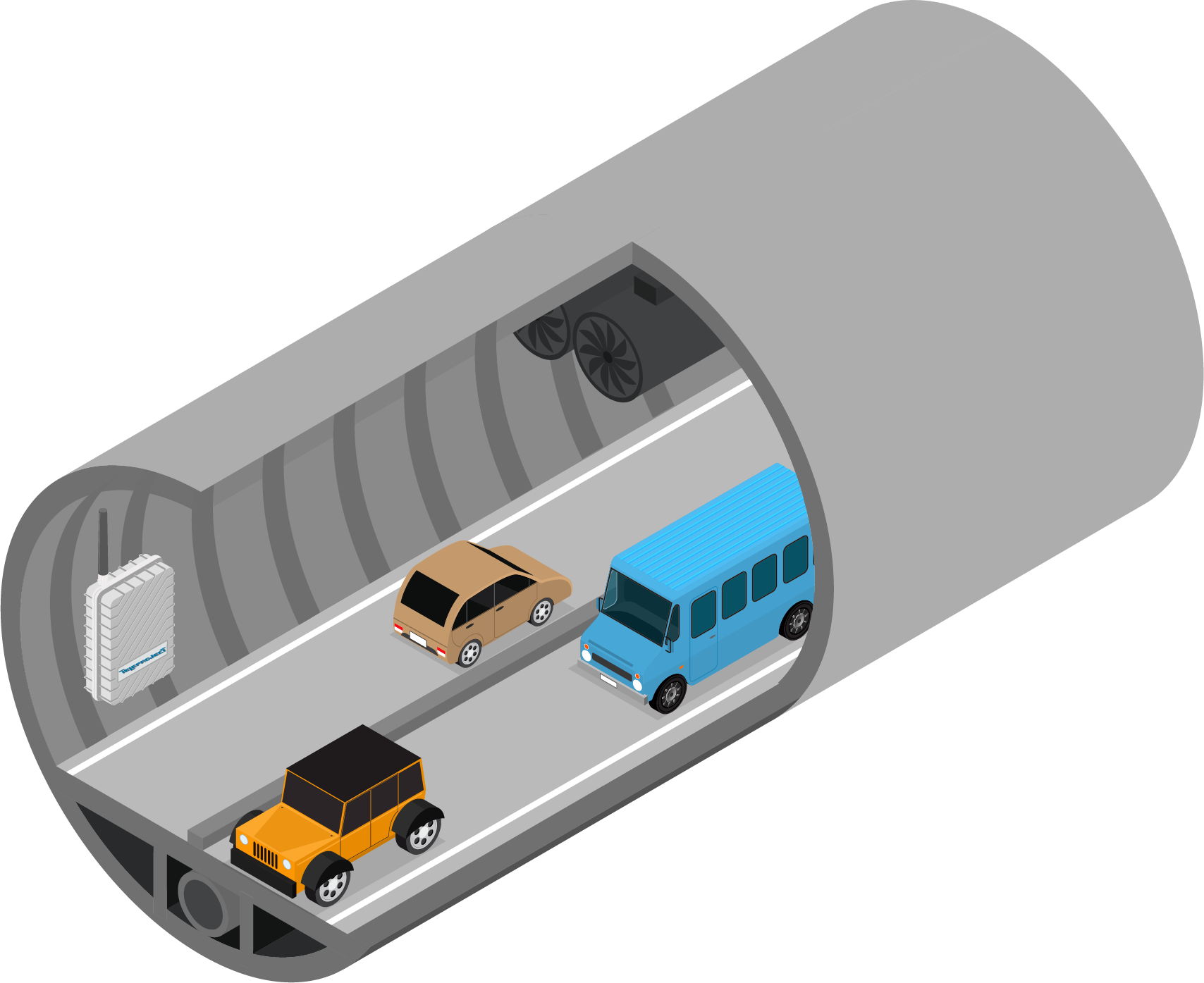

TP-RFX is designed to operate continuously in any outdoor environment, including extreme weather conditions, thanks to its IP67 certification. This makes it an essential tool for ensuring reliable and uninterrupted monitoring of critical carrier frequencies in emergency situations where around-the-clock operation is required
Other features:

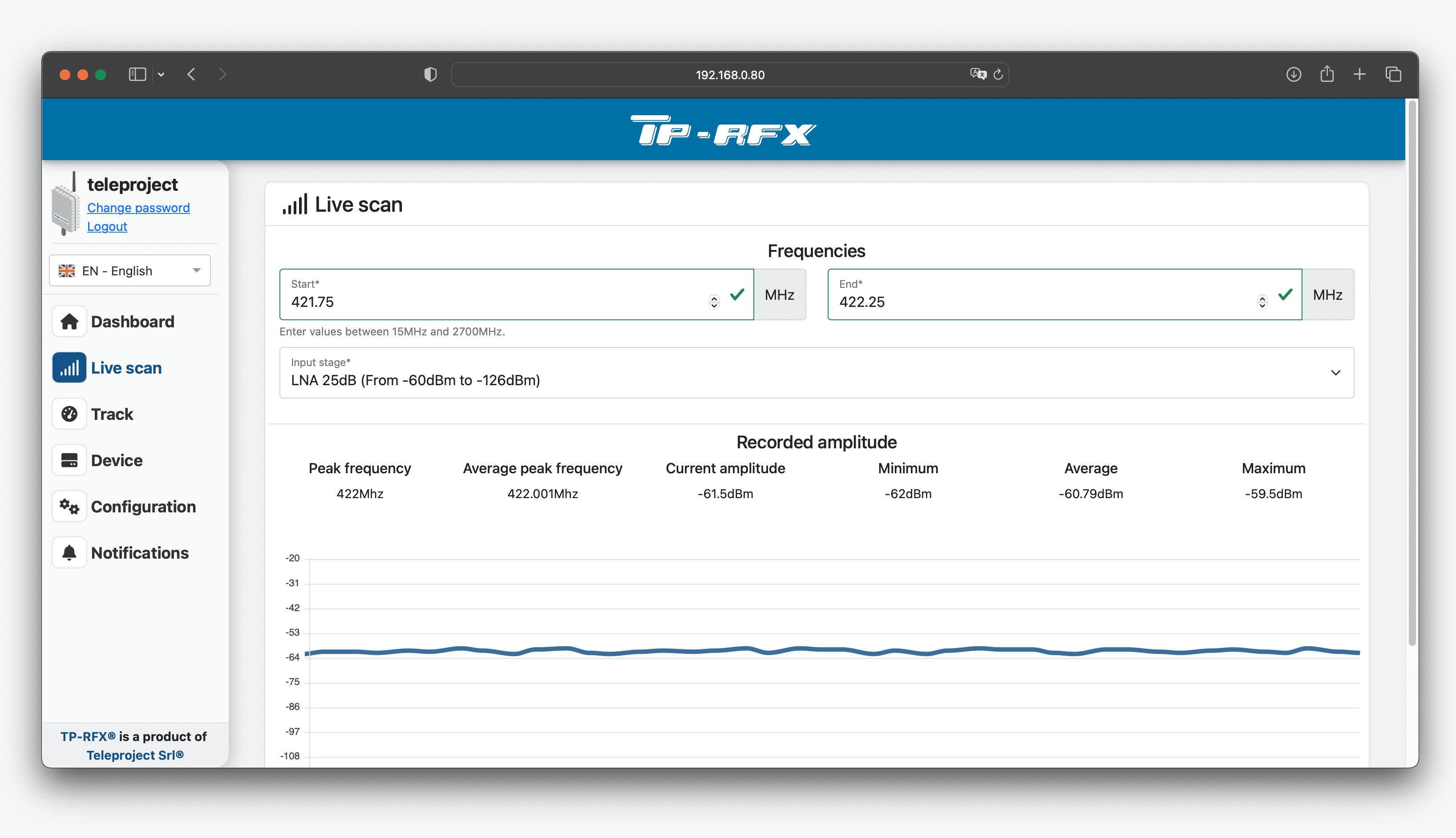

-Our Live Scan feature allows you to scan a range of frequencies from 15 MHz to 2.7 GHz in real-time for efficient and accurate monitoring.
-The History page allows you to view signal activity for a specific period of time (up to 2 years of history measurements), providing a convenient way to track and analyze signal patterns over time.
-Users can be created with varying roles and privileges to suit the needs of your organization.
Specifications
The TP-RFX is a high-performance RF spectrum analyzer designed for use in outdoor environments. It has a wide frequency range of 15 MHz to 2700 MHz, allowing for comprehensive analysis of a variety of signals. In Q4 2023, a version with a frequency range up to 6 GHz will be released
RF Analyzer
- Frequency band coverage: 15-2700 MHz
- Antenna connector: N-Female, 50 Ω
- Amplitude resolution: 0.5 dB
- Dynamic range: -130 dBm to +10 dBm
- Absolute Max input power: +30 dBm
- Frequency stability and accuracy: ± 10 ppm
- Amplitude stability and accuracy: ± 3 dB
- Amplitude and Frequency calibration: Factory calibrated
- Frequency resolution: 1 Khz
- Resolution bandwidth (RBW): Automatic 3 KHz to 600KHz
- Operating temperature: 0° - 50° C
Power supply
- Input voltage (PoE power supply): 36-56 V
- Operating voltage: 5 V
- Operating current: 10-1300 mA
- Max operating power: 6.5 W
- Protection: Overload and short circuit
- Maximun distance from power supply: 100 meters
Case and dimensions
- Connectors : 1 x RJ-45 PoE and 2 x N-Type female
- Dimension (without connectors): 235 X 155 X 75 (mm)
- Weight: 2 Kg.
- Enclosure Seal Operating temperature: -60° C to +230° C
- Heat Trap: +6.5° C under full sun (~100,000 Lux)
- Temperature raise using a 5-10W heat source: +5.5 Celsius
CERTIFICATION
EN IEC 61000-6-4:2019
EN IEC 61000-6-4:2019
EN IEC 61000-6-4:2019
